7 wire wireless control for Kipor generator

Wireless Control > Kipor Generators

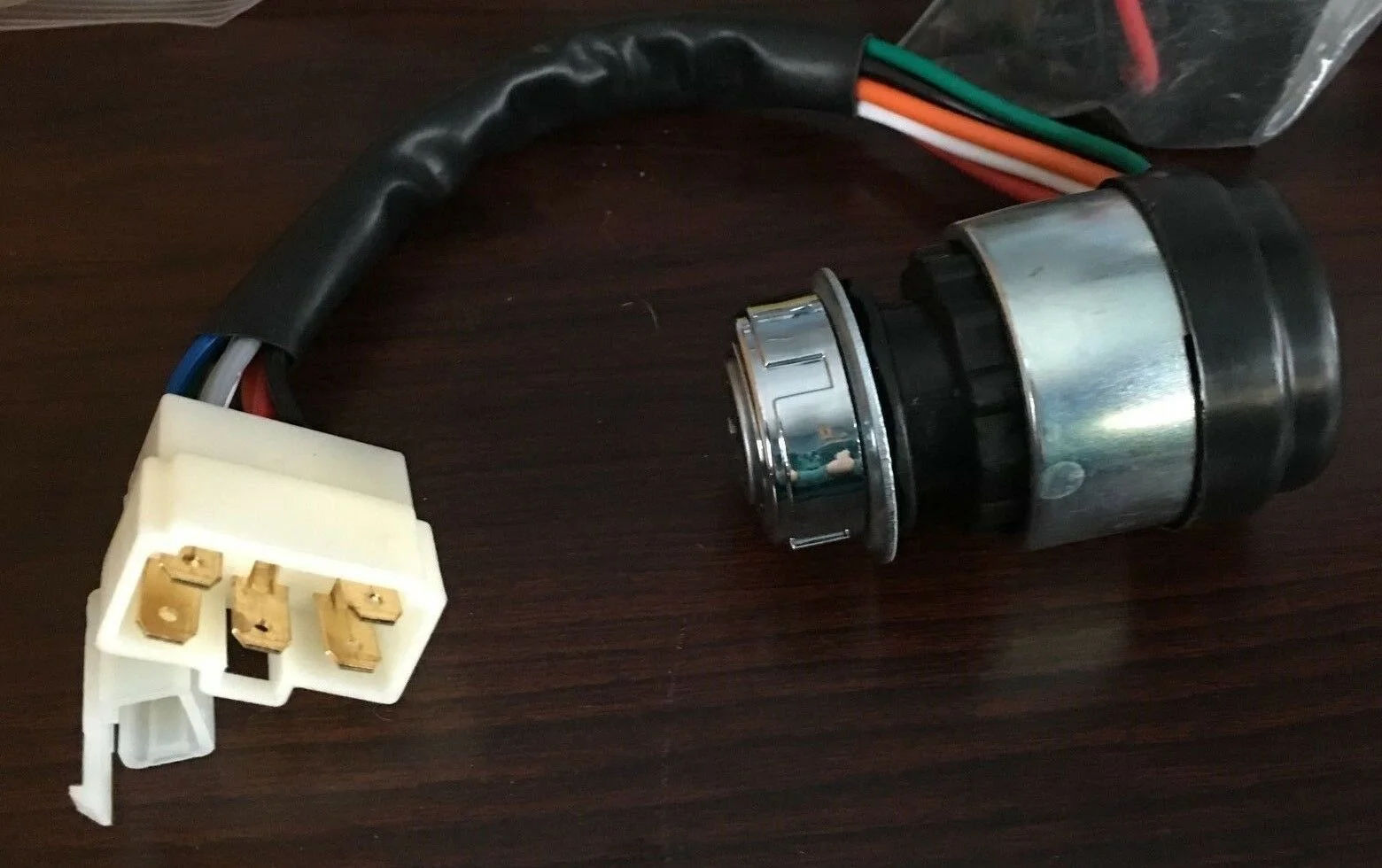

Kipor generator compatible wireless ignition key switch replacement.
(Direct replacement of Kipor ignition key switch part # JK425-2)

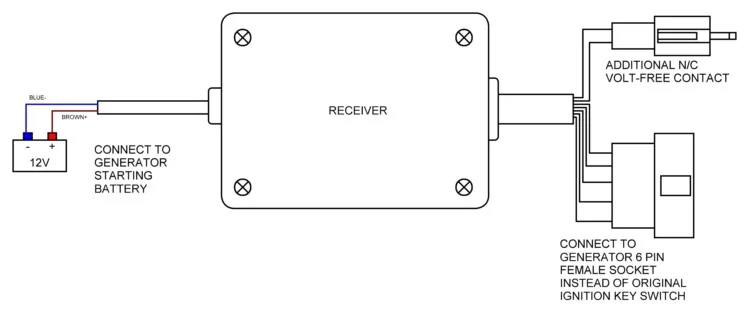

Simply unplug your Kipor ignition key switch and re-connect 2 empty sockets with our controller 5 + 2 pin plugs. Leave the controller outside the metal canopy to achieve better reception. The controller comes with 1m cable and 5 + 2 pin plugs pre-wired. All plug terminals can be easily re-arranged if required.

Please observe the shape of plastic shell, it must be matched to your generator connector.
If not sure, please take a good photo of that socket and email us.
Suitable for KDE6500E3 KDE6700T3 KDE12STA3 KDE3500E and more.
IMPORTANT NOTES
Make sure your 5 pin female socket has the following connections listed below:
1: Battery +12V supply
2: Fuel On +12V input
3: Starter On + 12V input
4: Battery negative supply
5: Linked to Batt. negative when generator is stationary (or not used)
6 & 7: Closed contact when generator not running
OPERATION

1. Press button "A" on the key fob for 1 sec. This will activate the fuel relay and make the generating set ready to run.
2. Press and hold button "B" until the generator starts.
To stop the running generator press button "A" again.
The working diatance of the key fob is approximately 100m in open area.
Should you wish to upgrade or add an extra powerful key fob to your order, please contact us first.
The standard wireless kit has 1 key fob (up to 100m) as pictured.
If your generator socket has a different wire arrangement, please don't hesitate to contact us.
We would be happy to help!
