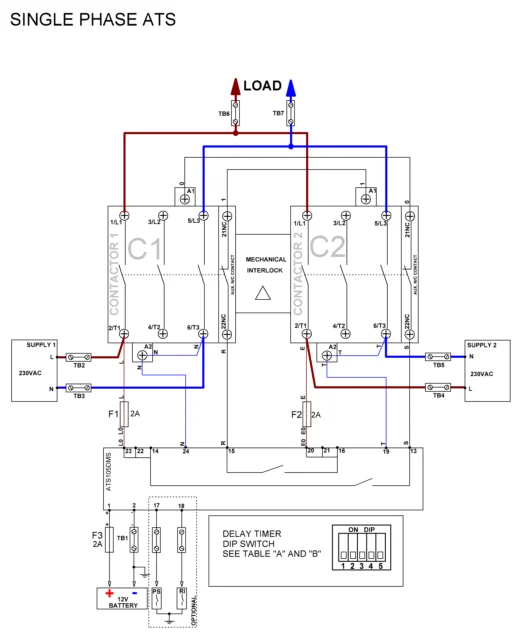

SINGLE PHASE ULTRA COMPACT AUTOMATIC TRANSFER SWITCH CONTROL PANEL (250x350x150mm)
Weight: 9kg
Use: Change-Over Switch (Mains-Mains) or (Inverter-Mains)
AC3 current rating: 25 Amp.
AC1 current rating: 40 Amp.

Description
The configurable ATS panel allows for many of the demanding applications in the modern power supply network to be achieved.
The ATS is designed as an end of line transfer control panel between two power supplies of typically similar security and availability.
It includes single phase sensing and timing functions to take account of PREFERRED SUPPLY FAILED delay and RETURN TO PREFERRED SUPPLY delay as well as the delay between control outputs to take consideration of contactor operating times.
Inputs are optionally provided for the remote selection of the PREFERRED SUPPLY and RETURN INHIBIT.
HOW IT WORKS
Under normal conditions with the default preferred supply as SUPPLY 1 and that supply is being available, the SUPPLY 1 output relay would be energized closing the SUPPLY 1 contactor 1 and connecting SUPPLY 1 to the load. When SUPPLY 1 becomes unavailable, the preferred supply failed delay timer is initiated and should it time out, the SUPPLY 1 output relay would be de-energized opening the SUPPLY 1 contactor 1 and disconnecting SUPPLY 1 from the load. After the internal switching delay and considering SUPPLY 2 is available, the SUPPLY 2 output relay would be energized closing the SUPPLY 2 contactor 2 and connecting SUPPLY 2 to the load. On return of SUPPLY 1 to a healthy state the return to preferred supply delay timer is initiated and should it time out successfully without disturbance, the SUPPLY 2 output relay would be de-energized opening the SUPPLY 2 contactor 2 and disconnecting SUPPLY 2 from the load. After the internal switching delay and considering SUPPLY 1 is within range, the SUPPLY 1 output relay would be energized closing the SUPPLY 1 contactor 1 and re-connecting SUPPLY 1 to the load. If the return inhibit was applied whilst ALTERNATIVE SUPPLY is on load, on return of PREFERRED SUPPLY to a healthy state the controller would however remain on ALTERNATIVE SUPPLY until RI push button is pressed again making return inhibit function inactive.

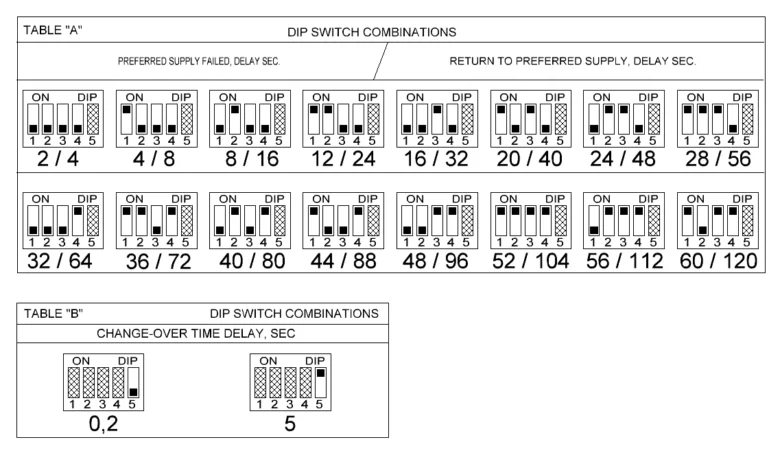

Time delays are set via 5 pole DIP switch fitted on the back of the controller and selection possible as per TABLE “A” and “B”, typically the return to preferred supply delay is TWICE the preferred supply failed delay.

ATS 25A 1PH specification:
DC Supply: 12Vdc or 24Vdc (6...40Vdc)
Max. standby current: 10mA @12Vdc
AC voltage input (SUPPLY 1): 230Vac
AC voltage input (SUPPLY 2): 230Vac
AC3 current rating: 25A
AC1 current rating: 40A
Dimensions: 250X350X150mm
Enclosure material: ABS
IP60 wall mountable ATS panel
Colour: RAL7035 light grey
Can be used in coastal installations
