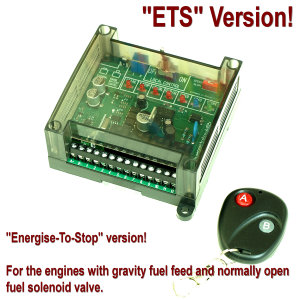

AECM107 auto start controller. Designed for the engines with gravity fuel feed and normally open fuel solenoid valves.
Auto start modules
DESCRIPTION
The starting cycle doesn't activate the fuel solenoid as it stays open all the time allowing the fuel flow. However, when the engine stops, the fuel solenoid will energise for 8 sec to cut off the fuel flow, then return to open position avoiding the battery discharge.
The Model AECM107 is an Automatic Engine Control Module designed to automatically [remotely] or manually start and stop the engine with normally open fuel solenoid valve. It will indicate the operational status and fault conditions, automatically shut down the engine and indicate the start engine failure by flashing “START FAIL” LED on the front panel. Other faults are indicated by steady LED. Local operation of the module is via 2 pos. toggle switch mounted on the front panel with OFF/ON positions. Remote wired control of the module is via terminal 1 (programmed to be used with a maintained N/O switch connected in-between the terminal 1 and battery negative).
Extra functions/items for AECM107 controller
(click on link below to add required item to your order):
Default Settings
Max. Standby Current: 10 mA @ 12 VdcAC
Alternator Input Range: 300 VAC max
Under speed shutdown: @ 30 Hz [45Hz for USA and Canada]
Over speed shutdown: @ 57 Hz [69Hz for USA and Canada]
Number of attempts: 3
Crank duration: 12 sec
Fuel cut off time: 8 sec
Preheat time: 10 sec
Load on time delay: 10 sec
Load off time delay: 10 sec
Hold-off timer set for: 7 sec
Starter relay output: 20A max
Fuel solenoid output 20A max
Glow plug relay output: 20A max
Load control relay output: 20A max
Dimensions: 95x90x40mm
Operating Temperature Range: -30 to +70°C.
The module should not be used outside or in wet room.
AECM107 wiring diagram
