For Hyundai HY3200SEi / HY4500SEi

Auto start modules

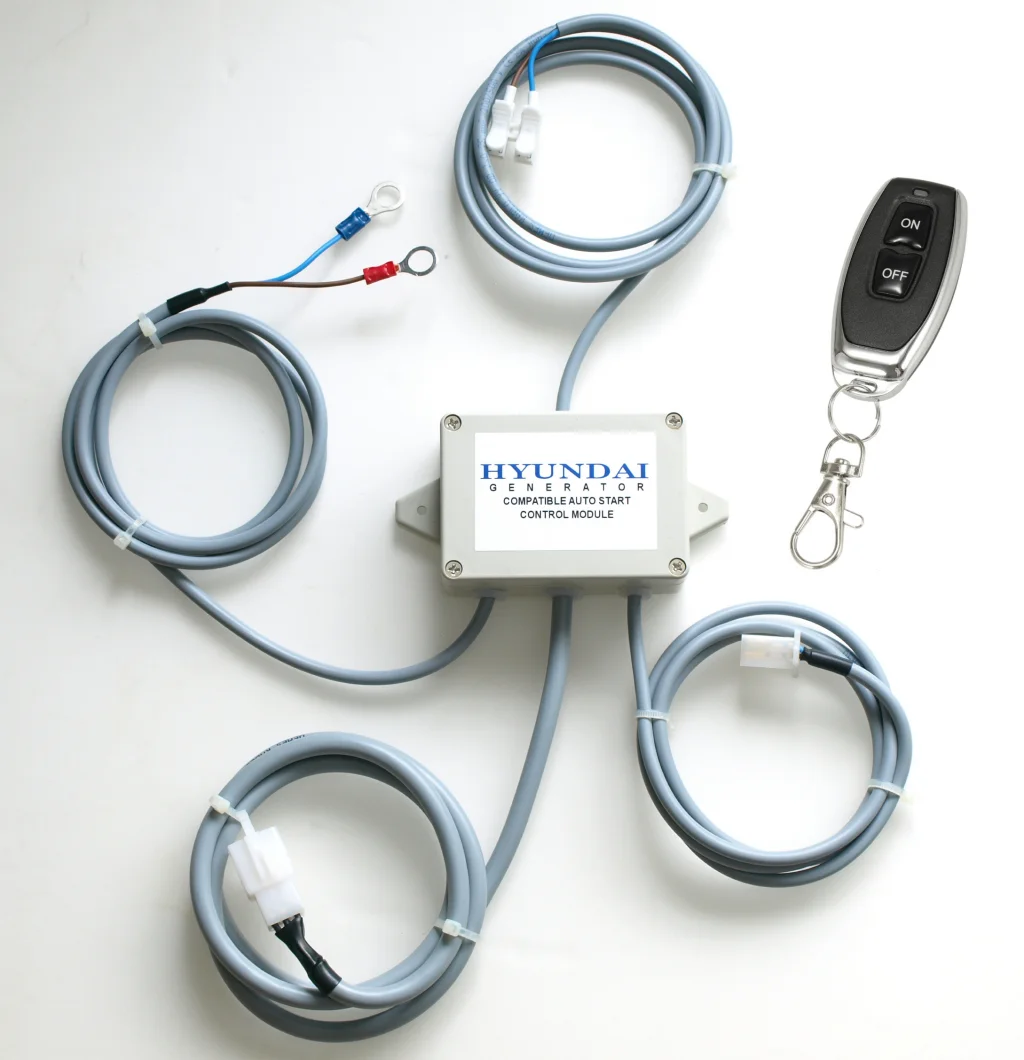

Hyundai generator HY3200SEi / HY4500SEi compatible auto start controller (2 wire start-stop) key switch replacement.


Simply disconnect your Hyundai ignition key switch from the generator electrical system and re-connect the female connector part to the auto start controller 6 pin plug. Power up the controller by connecting 12V power cable: brown wire to battery +12V and blue wire to battery negative. Connect the "engine running" signal 2-pole connector to your generator 12V 2 pole connector. If that 2-pole connector is not available, please use the "engine running" adaptor cable and connect it directly to the charging socket (red wire is positive and black wire is negative). Fit the controller near generator on any suitable flat surface. Test the generator start by connecting auto start wires together. The controller may come with a key fob ( up to 100m working distance) if ordered during checkout.

The controller dimensions (excluding flanges):
Length: 82mm
Width: 57mm
Height: 34mm
Length of cable (each): 1m
Working voltage: 12Vdc

Operation of the 2 wire start-stop input
To start and run the engine automatically, connect and hold 2 start-stop wires together.
The controller will try to crank and run the generator up to 6 times automatically.
Ones the generator started and the "engine running" signal becomes available, the controller will stop cranking leaving engine running.
To stop the engine: disconnect 2 start-stop wires.

Operation of the key fob
Press button "A" (or "ON") on your key fob.
The controller will try to crank and run the generator up to 6 times automatically.
Ones the generator started and the "engine running" signal becomes available, the controller will stop cranking leaving engine running.
To stop the engine: press button "B" (or "OFF").



Inside the generator: Disconnect the original ignition key and connect the 6-pin connector instead.
Hyundai HY3200SEi generator auto start wiring diagram
Auto Start Controller HY3200SEi connections
Hyundai HY3200Sei engine running plug location
Hyundai HY3200SEI controller adapter
