Engine generator auto start remote control modules. - Automatic Generator Control Modules

Smart 2 Wire Input Converter Into 3 Pole Momentary Rocker Switch

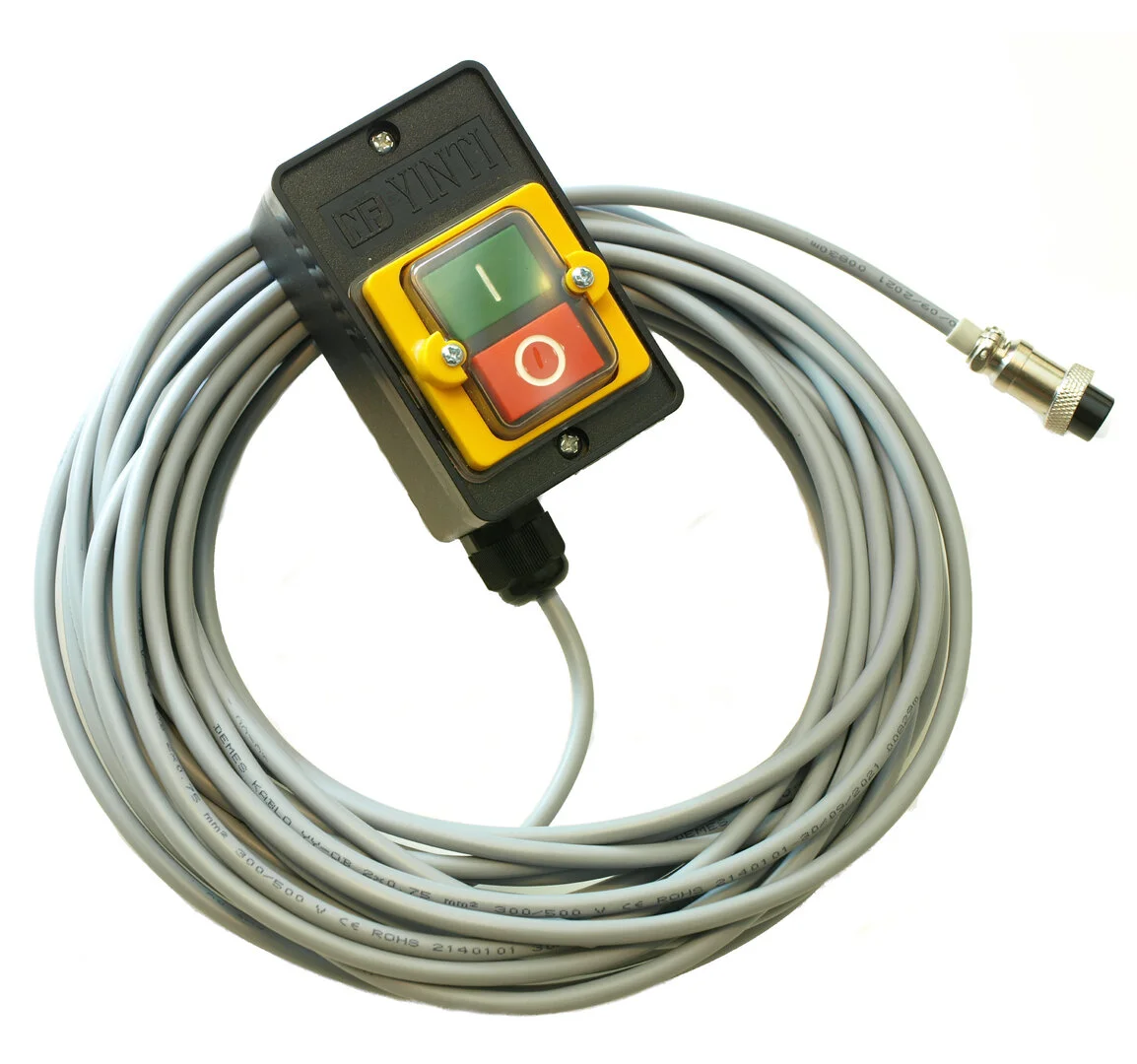

Wired remote start and stop of Hyundai HY3200SEi / HY4500SEi.
All generators must have an electric auto choke.

This ATS controller PCB is designed to upgrade some Hyundai diesel generators with auto start function which are having 3 pin ATS socket fitted but not functioning. Our ATS controller could be a solution in this case.
Suits DHY 6000/8000, EVO 6000 and similar.

This ATS controller PCB is designed to upgrade some Hyundai diesel generators with auto start function which are having 3 pin ATS socket fitted but not functioning. Our ATS controller could be a solution in this case.
Suits DHY 6000/8000, EVO 6000 and similar.

Suits DHY 6000/8000, EVO 6000 and similar, fits to 16 mm outer diameter male type 3 pin socket.

Hyundai generator ATS plug (female type) and cable.
Suits DHY 6000/8000, EVO 6000 and similar, fits to 16 mm outer diameter male type 3 pin socket.

Hyundai generator ATS plug (female type) and cable.
Suits DHY 6000/8000, EVO 6000 and similar, fits to 16 mm outer diameter male type 3 pin socket.

Suits the following generating sets: Hyundai DHY 6000 / 8000, EVO 6000 and similar with 3 pin ATS working socket. Capable to run the generator automatically, unattended using 16 on-off programmable time slots. Manual start-stop override function (using "MANUAL" button available on the timer) or wireless start-stop timer override function. Wireless Key Fob button A (or "1") start, button B (or "2") stop. Timer Minimum interval: 1 min
Comes with cable and 3 pin plug attached. (the length of cable can be selected from the menu). Set specific day and time or a group of days when you would like to run the generator. Wall mountable timer with 3 core cable and Hyundai 3 pin plug attached, plug&play device. Power source: Hyundai starting battery 12V (fed from the ATS socket)
Item comes with user manual instructions. Dimensions of timer: 60(L)x60(W)x32(H)mm.
!!! Before ordering: please make sure your Hyundai generator has a working 3 pin ATS socket !!!

This ATS 3 Pin plug is used to connect the ATS panel to the Hyundai generator automatic starting system. The outer diameter of the matching 3 pin ATS socket should be 22mm. Please make sure your generator has this type of socket fitted before placing the order.
Compatible generators:
Hyundai DHY9KSEm
Hyundai DHY11KSEm
Hyundai DHY18KSEm
Hyundai DHY22KSEm
Hyundai DHY28KSEm
Hyundai DHY11KSE
Hyundai DHY14KSE
Hyundai DHY22KSE
Hyundai DHY28KSE
Hyundai DHY34KSE
Hyundai DHY60KSE
Hyundai DHYD90KSE
Hyundai DHYD120KSE
Evopower D9KSEm
Evopower D11KSE
Evopower D11KSEm
Evopower D14KSE
Evopower D22KSE
Evopower D22KSEm
Evopower D28KSE
Evopower D28KSEm
Evopower D34KSE
Evopower D45KSE
Evopower D60KSE

Allows to start, run and stop Honda EU70is/EU7000is wirelessly. Up to 100 m working distance (when the black key fob used). The working distance is not guaranteed and depends on working conditions. The maximum working distance is usually achieved in the line of sight.

Compatible with: HONDA EU65is/EU6500is/EM5000is/EM7000is/EM3800SX/EM4000SX/EM5000SX/EM6500SX/(EM4500CXS / EM5500CXS B,F,G,GW type), EM5000SXK2/EM6500CXS.
Allows to start, run and stop the Honda generator wirelessly. Up to 100 m working distance (when the black key fob used). The working distance is not guaranteed and depends on working conditions. The maximum working distance is usually achieved in the line of sight.
If your generator is not listed, please contact us first providing your generator exact model and serial number so we could help you to get the right controller.

Compatible to: EU70is and EU7000is Honda generators.
Not compatible to Bluetooth equipped Honda generators.
Important note: if your Honda generator not in the list: please contact us first providing your Honda exact model number and images of Honda RC socket so we could help you to get the right part.

Honda EM3800SX, EM4000SX, EM5000SX, EM6500SX, EM4500CXS / EM5500CXS B,F,G,GW type, EM5000SXK2, EM6500CXS compatible auto start controller.
Not compatible to Bluetooth equipped Honda generators.
Important note: if your Honda generator not in the list: please contact us first providing your Honda exact model number and images of Honda RC socket so we could help you to get the right part.

AECM107 universal generator auto start controller.
Control your generator automatically from the distance or manually.
DIN rail or flat surface mountable, convenient fitment.

AECM107 universal generator auto start controller, designed for the engines with gravity fuel feed and normally open fuel solenoid valves. It will temporarily energise the fuel solenoid valve to cut off the fuel flow and stop the engine.

AECM107 universal generator auto start controller.
Control and charge your engine battery or external battery automatically.
Control your generator automatically from the distance or manually.
DIN rail or flat surface mountable, convenient fitment.

Warrior generator auto start controller. Compatible generator models: 6000S, 6000S3, 6500SV, 6500SV3 and other Warrior diesel generators with 6 pin ATS socket fitted.

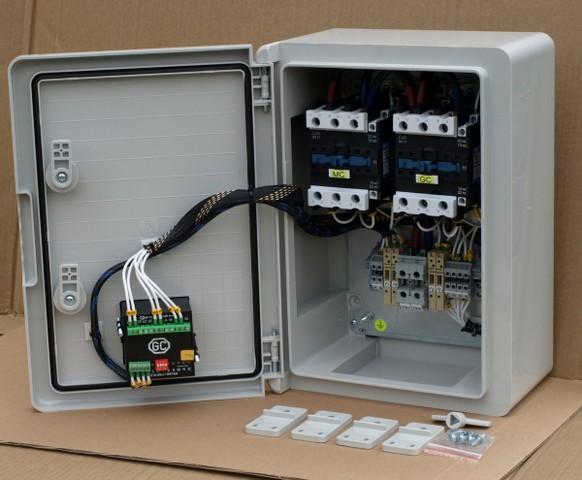

Automatic Change-Over switches. Mains-Genset or Solar Power.

Warrior ATS Cable+Plug is used to connect an external ATS panel or/and auto start control module

Control your Hyundai generator from your smartphone or tablet.
Set up the timer to run your generator automatically.
Works with Google assistant, Amazon Alexa, Xiao Ai, TMALL GENIE.
Product compatibe with:
DHY6000SE
DHY6000SELR
DHY8000SE
DHY8000SELR
DHY8000SELR-T (Three-phase)
DHY8500
DHY8600
This part may also fit Yanmar L90 and L100 derivatives, such as Kipor.
