Kipor KDE6700T Auto Start
Auto start modules
Smart Key Switch (SKS) is a direct replacement of the original Kipor Ignition key switch. It is designed to provide an extra functionality to the generator user such as 2 wire start - stop and wireless control (approx. 500~1000m distance). The SKS will provide 5 automatic start attempts and automatically inform the user of an unsuccessful engine start with an intermittent beep. If the engine starts successfully, the SKS will automatically disengage the starter motor and allow the generator engine to run until it receives a stop signal from the user. If the generator stops generating voltage during normal engine run, the SKS will automatically shutdown the engine and alert the user with a continuous beep.

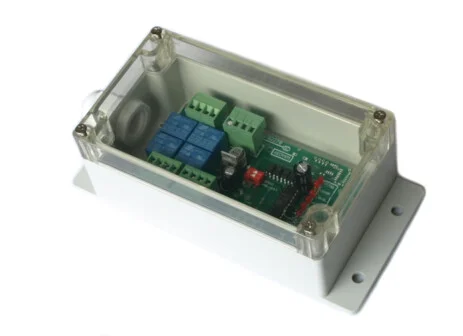

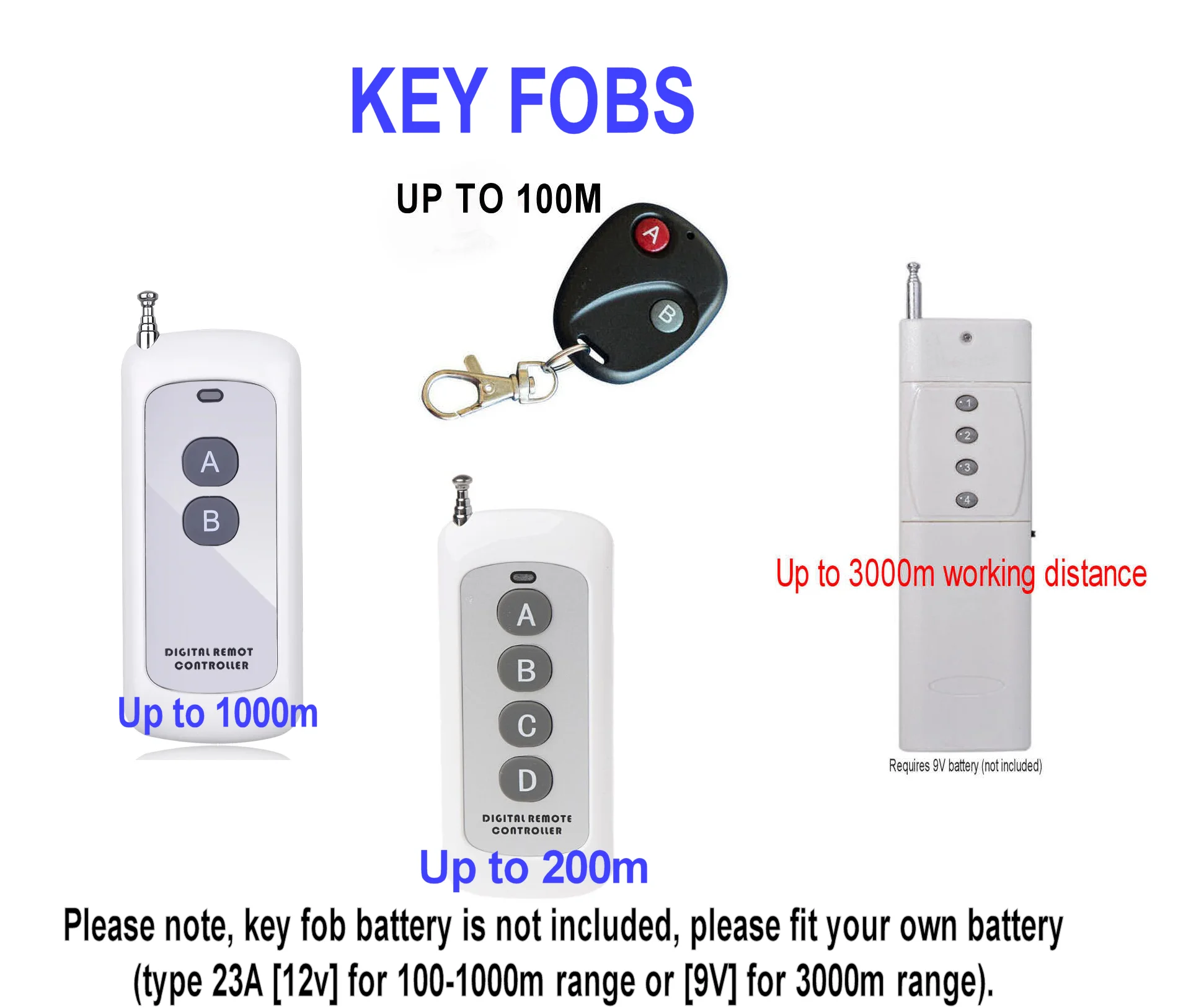

Operating the SKS from the key fob: press button "A" to start. Press button "B" to stop. Pull out the telescopic aerial for better reception. The working distance is approximately 500~1000m, in some cases maybe shorter. Please note, the working distance is not guaranteed. Theoretically, this is achievable with direct line of sight under ideal conditions.

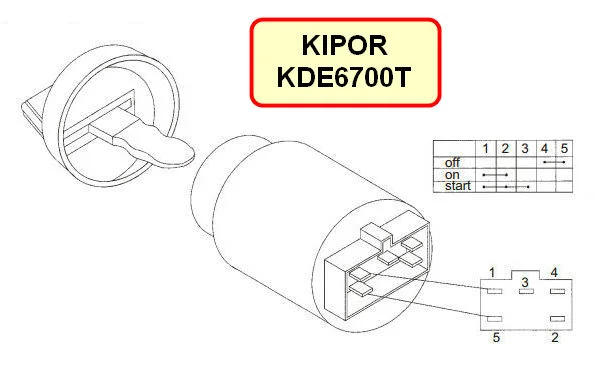

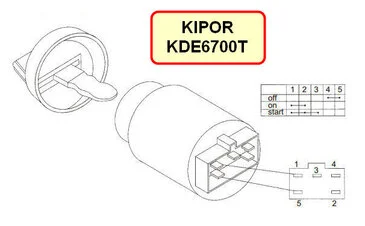

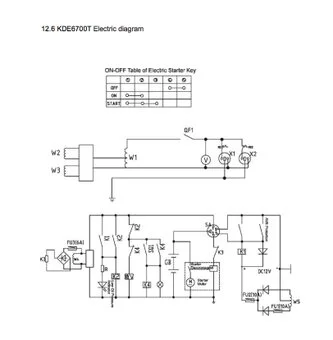

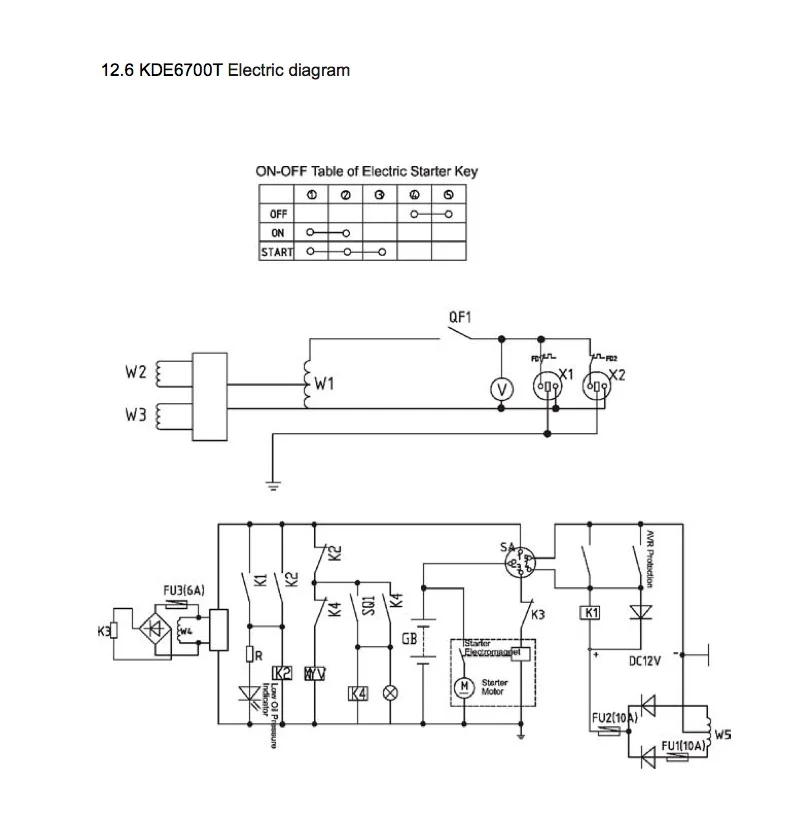

The image below shows the original Kipor ignition switch.
Please note: it is required to unplug the original ignition key switch and plug in the SKS instead.
The image below shows the Smart Key Switch module connections.
To make it work:
- Disconnect the original ignition key switch from the 5 pin socket and plug in the SKS instead
- connect the generator power output 240Vac to the "generator 240vac power sensing input" (brown and blue wires).
- Connect generator starting battery 12v to (black (-) and red (+) wires.
- Connect the grey wire and black wire to your remote N/O start-stop switch (if used).
Specification
Max. standby current: 7.5mA @ 12Vdc
Working voltage: 12Vdc
Controller size: 85x58x33mm
Key fob size: 95x4x13mm
Key fob battery required (type): 23A
