Auto start modules
Model: AECM103FBSL for:
Honda EM3800SX, EM4000SX, EM5000SX, EM6500SX, (EM4500CXS / EM5500CXS B,F,G,GW type), EM5000SXK2, EM6500CXS.
Important note
If your Honda generator is not in the list: please email us your exact Honda model and serial number so we could help you to get the right controller.
Description

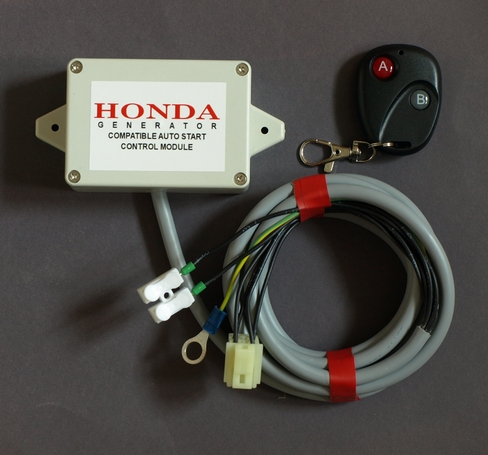

The Model AECM103FBSL is an Automatic Engine Control Module (controller) designed to automatically or manually start and stop the Honda engine. The controller has 3 automatic starting attempts. Should the controller run out of starting attempts and the engine couldn’t start, the controller will indicate this failure by intermittent sound. Any other unexpected engine shutdown is indicated by a continuous sound. To reset the controller back to working mode: turn the wired switch to Off position or, if the controller was initially started from the key fob: press button “B”. Automatic wired operation of the module is via ordinary volt-free Off-On switch connected to the 2 pole spring wire quick connector. This wired connection can be also used to start an stop the engine from the ATS panel volt-free control switch. Remote wireless control of the module is via key fob buttons: “A” start and “B” stop. The key fob is an optional device and can be ordered from the “Extra Items/Features” section. The number of the key fobs can be selected during checkout. The key fob comes without battery fitted, please fit your own battery (type “23A”).
Key Features
- Remote wired / Manual start and stop (start from the ATS, temperature sensor switch, Humidity switch, manual remote switch, etc)
- "FAIL TO START" generator shut down
- Very low power consumption in stand-by mode (10mA max)
- All parameters are user configurable (prior to order)
- No AC power required to function
- The controller comes with 2m Honda cable and RC 6-pin connector fitted
Optional Features (available to choose from the section "Extra features/items" shown below)
- Wireless start / stop function (key fob control). Allows to control the Honda engine from the distance.
- BVS (Battery Voltage Sensor). This device allows the controller to monitor the battery voltage and start the Honda engine automatically upon registering the (LVT) Low Voltage Threshold. The BVS will automatically stop the Honda engine when the battery voltage becomes equal or higher than (HVT) High Voltage Threshold. These thresholds are user adjustable. The maximum controlled voltage is 99.9Vdc.
- 24/7 Digital timer allows to automatically start, run and stop the Honda engine according to its schedule.
- Mobile network Honda control.
Extra Items/Features
Add the required feature or item to your AECM103FBSL Honda controller
This key fob will be paired to the Auto Start Control Module you would like to order from us. This key fob cannot be sold separately from the Auto Start Control Module! The actual working distance may vary and depends on working environment.
Immediate availability
£22.00
Smart Control of your battery bank charging automatiucally. Automatic generator/engine start-stop control.
Immediate availability
£170.00
This device allows to start and stop your generator within 17 pre-set time slots throughout the whole week.
Immediate availability
Quantity Discount available
£36.00
This device allows to start and stop your appliance within 17 pre-set time slots throughout the whole week.
Immediate availability
Quantity Discount available
£34.00
This device allows to start and stop your generator within 17 pre-set time slots throughout the whole week.
Immediate availability
Quantity Discount available
£24.00
This is an incredibly versatile yet highly
functional thermostat controller. With
this module you can intelligently control
power to most types of electrical device
based on the temperature sensed by the
included high accuracy NTC
temperature sensor. Although this
module has an embedded
microcontroller no programming
knowledge is required. 3 tactile switches
allow for configuring various parameters
including on & off trigger temperatures.
The on board relay can switch up to a
maximum of 240V AC at 5A or 14V DC
at 10A. The current temperature is
displayed in degrees Centigrade via its 3
digit seven segment display and the
current relay state by an on board LED.
functional thermostat controller. With
this module you can intelligently control
power to most types of electrical device
based on the temperature sensed by the
included high accuracy NTC
temperature sensor. Although this
module has an embedded
microcontroller no programming
knowledge is required. 3 tactile switches
allow for configuring various parameters
including on & off trigger temperatures.
The on board relay can switch up to a
maximum of 240V AC at 5A or 14V DC
at 10A. The current temperature is
displayed in degrees Centigrade via its 3
digit seven segment display and the
current relay state by an on board LED.
Immediate availability
£39.00
GSM generator control-SMS/phone call generator start-stop
Immediate availability
£129.00
AECM103FBSL Honda Wiring Diagram
