Hyundai Generator Remote Manual Wired/Wireless Controller
Wireless Control > Hyundai Generators

- Capable to run the Hyundai generator manually, by pushing the green button switch to "On" position.
- Requires an ATS controller to be fitted inside the generator panel (it can be fitted by Hyundai manufacturer, but not always. Please check. Otherwise please order one from us).
- Can be also operated from the distance by using the key fob (optional part, please add the key fob/number of key fobs/working distance/ to your order from drop down menu in shopping cart). Note: the wireless receiver part will be fitted inside the black On-Off switch so you can bring it closer to your property to achieve a better reception)
- The red button switch is a stop signal
- Power consumption: N/A (5mA stand-by current with wireless control on-board)

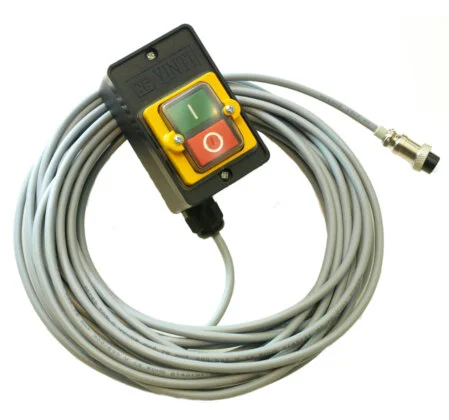

- Wall mountable enclosure with robust On/Off switch fitted
- Comes with cable and Hyundai 3 pin plug attached, plug & play device
- The required length of cable can be selected from the menu
- Power source: Hyundai starting battery 12V (fed from the ATS socket)
- The switch doesn't come with user manual, easy enough to fit and operate as is. However, the ATS controller does come with user manual (if ordered).
- Dimensions of enclosure: 90(L)x55(W)x60(H)mm

Please add the key fob to your order to get a wireless start-stop function together with the manual remote start-stop switch control.
You can select the number of key fobs and working distance in the drop down menu directly in the shopping cart.
We will fit the wireless receiver part inside the manual start-stop switch black enclosure so you could bring it closer to your property and achieve a better reception.
Please note:
- If generator starts from the key fob, it is not possible to stop it from the red button on the switch.
- If generator stars from the green button, it is not possible to stop it from the key fob.
- So, if you start the generator from the green button, please stop it from the red button.
- If you start the generator from the key fob, please stop it from the key fob too.

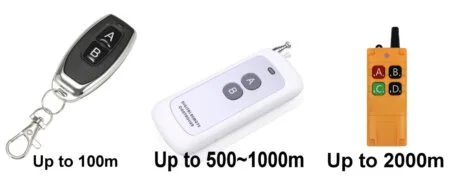

- The key fob working distance may wary and highly depends on working environment and not guaranteed.
- The maximum possible distance is usually achievable in the line of sight.

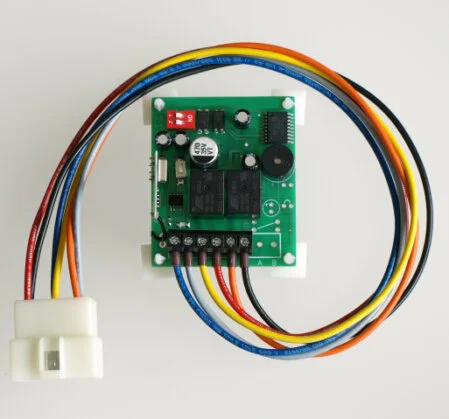

This ATS controller PCB is designed to upgrade some Hyundai diesel generators with auto start function. The start signal is requested from any external start-stop switch connected to the Hyundai ATS socket. Some Hyundai generators have 3 pin ATS socket available without ATS controller fitted inside, so the ATS socket remains deactivated. Our ATS controller could be a solution in this case. The ATS controller PCB has 6 automatic starting attempts for reliable engine start and “engine running” monitor which is automatically checking the state of engine between each starting attempt and also constantly after successful start. Should the ATS controller run out of starting attempts and engine couldn’t start, the ATS controller will indicate this failure by intermittent sound.
More information can be found in the Hyundai ATS controller user manual.
Q: I am not sure if my Hyundai generator already has an ATS controller fitted. How do I check?
A: To make sure your Hyundai ATS socket is active, please check if your Hyundai generator has an ATS controller fitted inside the panel. The ATS controller can be initially fitted by manufacturer, however in many cases it is not. It is quite easy to test your ATS socket and see if there is an ATS controller fitted inside.

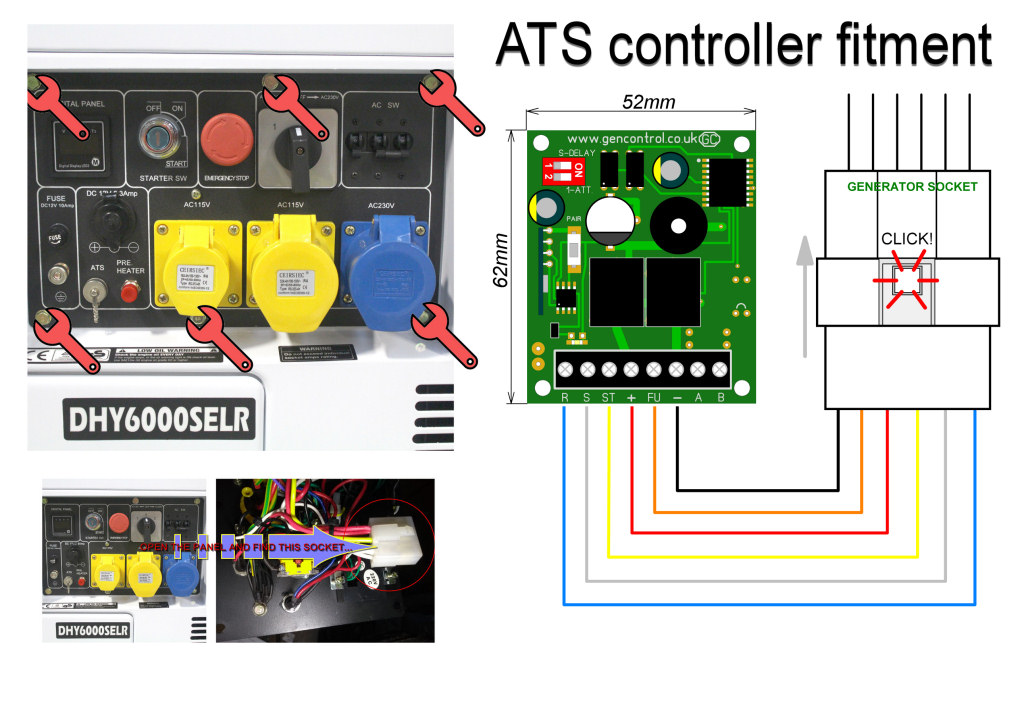

The easiest way to test is to turn the engine ignition switch to the OFF position and short the ATS socket pins 2 and 3 with a piece of wire or any other suitable metal object (tweezers). Make sure that you do not touch with wire/tweezers any other generator parts (generator body) or ATS socket pin 1 (which is battery negative), as this may cause the fuse on your generator to blow and no other tests will be successful. If your generator starts while you short and hold pins 2 and 3 together, this means you definitely have an ATS controller fitted. No need to purchase it from us. Otherwise please consider ordering one from us and fit inside the generator panel as shown below.
